Getting Xdebug working within Intellij 2016
Andrew Alba • March 9, 2017
Using IntelliJ for PHP development is great and although it is slightly different then PhpStorm, it can still be configured to deliver everything PhpStorm does.
Having been doing a lot of development with Vagrant, there have been a few occasions where Xdebug just doesn't seem to work. It turns out that it is fairly simple to get it working, but there are a few places where it breaks down. We'll try to break those down here (these instructions were put together quickly, so please feel free to let us know if there are gaps in the instructions or we have some horrible spelling errors).
Being lazy, we like to use tools to setup the vagrant box and one of our favorites is PuPHPet. This tool gets updated frequently and although some of the assets occasionally don't get installed on the virtual machine, it is very useful.

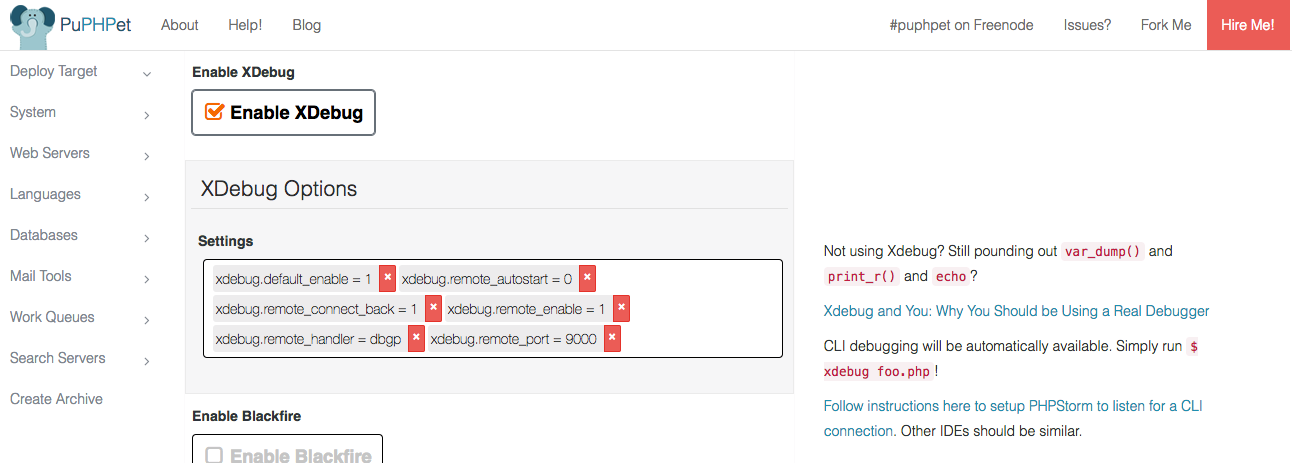

xdebug configuration using PuPHPet[/caption]Having checked the box to install Xdebug on almost every setup, we found that you might have to tweak the configuration if you want Xdebug to just work out of the box. To do this, find your vagrant config.yaml and search for the xdebug section. If you are using PuPHPet, it might look something like this:
xdebug:<br /> install: '1' settings: xdebug.default_enable: '1' xdebug.remote_autostart: '0' xdebug.remote_connect_back: '1' xdebug.remote_enable: '1' xdebug.remote_handler: dbgp xdebug.remote_port: '9000'
It took us some time to figure out what was wrong, but then we aren't always the sharpest tack in the box. If you notice the xdebug.remote_autostart setting, it is set to false. If we want this to just work out of the box we will need to change the setting to true.
xdebug: install: '1' settings: xdebug.default_enable: '1' xdebug.remote_autostart: '1' xdebug.remote_connect_back: '1' xdebug.remote_enable: '1' xdebug.remote_handler: dbgp xdebug.remote_port: '9000'
Once this is done, you can simply reload your vagrant box
vagrant reload --provision and the setting should build properly. If don't want to reload vagrant, you also have the option to ssh into your virtual machine and change the setting manually in the xdebug.ini file. Depending on your virtual machines operating system it might be in a different location. We usually use Ubuntu so you can find the xdebug settings here
/etc/php/[version]/mods-available/99-xdebug.ini. Manually change the setting and then restart php.

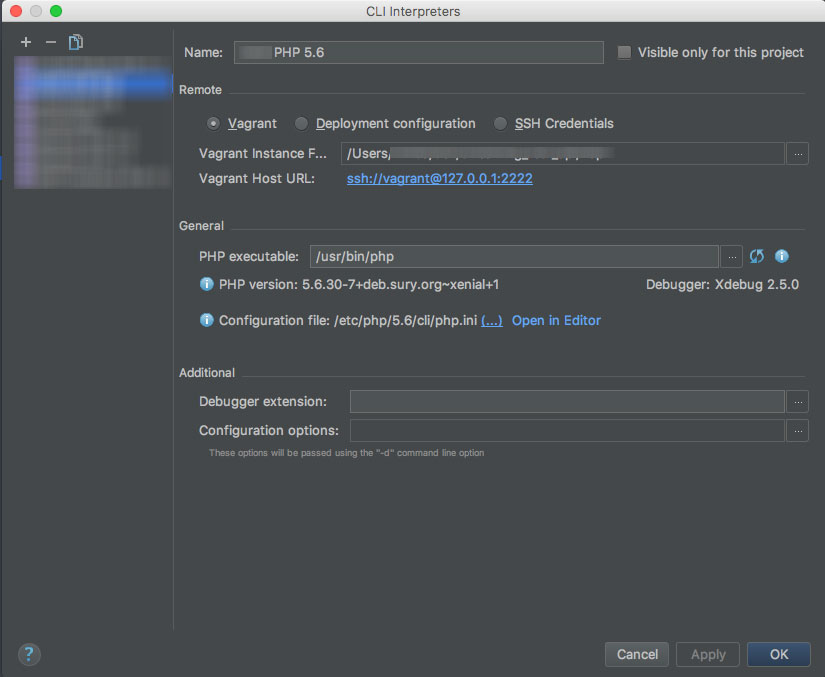

We set the development environment using the vagrant box in IntelliJ fairly easily. It is best to start the vagrant instance ahead of time. Click on Preferences > Languages & Frameworks > PHP. From this point you can select the CLI Interpreter browser and then click the (+) to add a new remote interpreter.

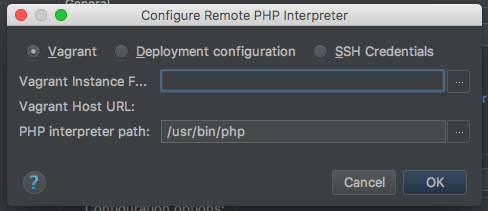

When the new window appears click the Vagrant radio and point the Vagrant Instance path to your vagrant folder and click "OK".
Once you have successfully setup the remote interpreter, you can click "Apply" or "OK" to save the setting.
At this point if you have not started the vagrant box, please get it started up. We want to make sure the server is running and that the absolute path is mapped properly.

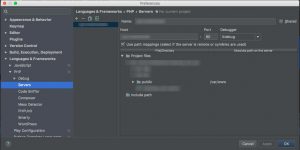

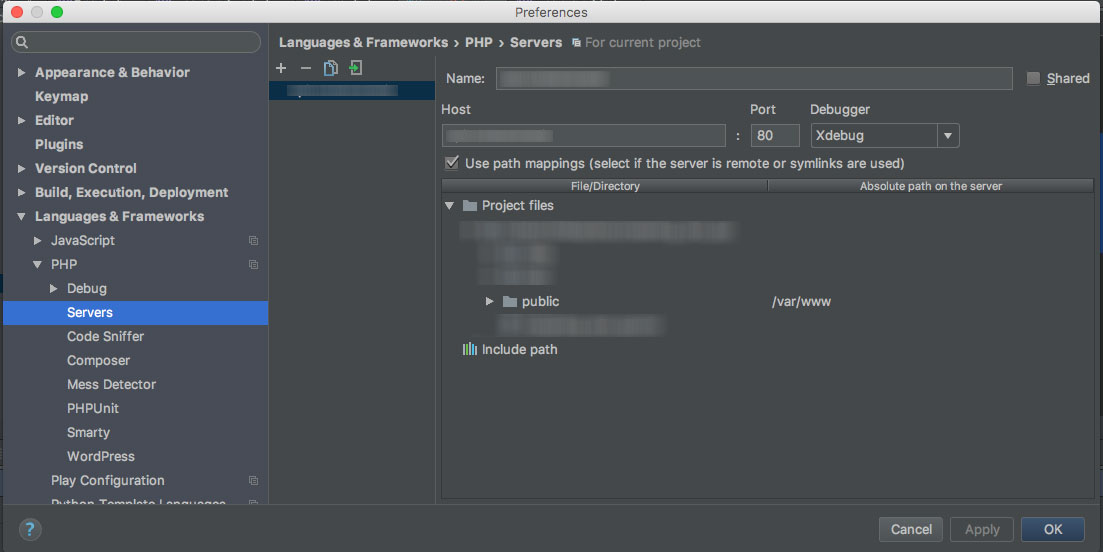

Open the IntelliJ preferences again if it is closed out and navigate to Preferences > Languages & Frameworks > PHP > Servers. Here you should see your remote server. What you will want to do is make sure that your sites document root is mapped properly. In our example the vagrant box is mapping
/var/www to a folder in
/Users/Developer/Projects/rest_api/public. Looking under the File/Directory column, we look to see if that folder has a corresponding mapping to
/var/www and if not we add it (make sure to hit your return key after entering the path or it will not save). Once that is completed, you can click "OK" to save the changes.
You just need to tell IntelliJ to "Start Listening for PHP Debug Connections" and you should be in business. Click on the the line(s) of code you would like to set a break at and hit your site.
